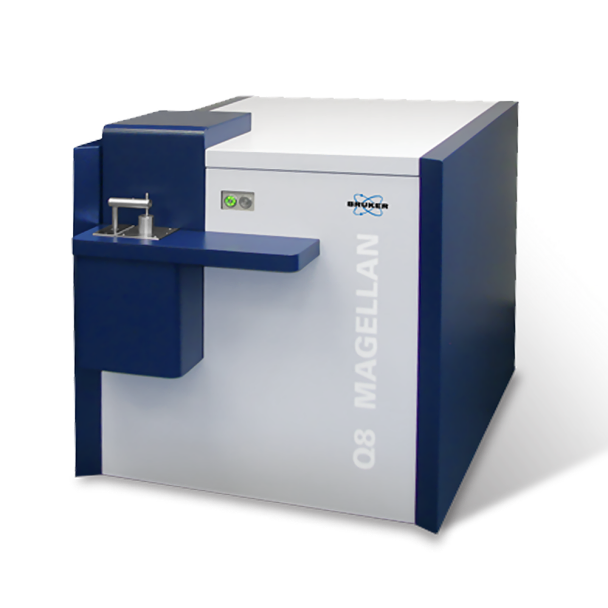

Q8 MAGELLAN
OPTICAL EMISSION SPECTROMETRY (OES)
The new generation of the Q8 MAGELLAN spectrometer is setting new standards with respect to stability, flexibility, ease-of-use and analytical functionality for the elemental analysis of metals. Each Q8 MAGELLAN is tailor made to match your current and future requirements by an optimal selection from >200 available analytical channels: single or multi-base applications, trace analysis or alloys, the Q8 MAGELLAN can be configured to master virtually any metal analysis task.
Highlights:
- 100% PMT-based performance supported by a digital plasma generator for unlimited time resolution incl. SSE and inclusion analysis
- High-vacuum optics ensures optimal performance without argon purge

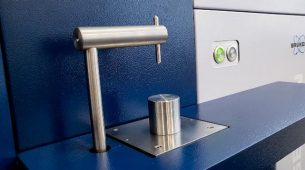

- Heavy-Duty, low maintenance spark-stand with co-axial argon flow
- Automatic sample clamp ensures fast and reliable one-button operation
- ArgonStopTMmeans no argon consumption during breaks with reduced start-up times and improved analytical performance on small samples and thin wires
- True factory calibration with reference materials, evaluated by an expert to ensure highest accuracy and analytical quality
Technical Details:

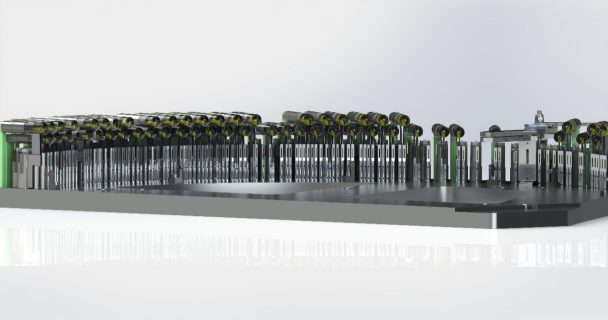

- Paschen Runge / 750 mm
- Wavelength range: 110 nm – 800 nm, up to 128 analytical channels
- Photomultiplier detectors
- Single vacuum optic
- Dimension: 0.97 x 1.050 x 1.350 m. / (W x H x D)
- Weight: 300 kg / ~ 660 lbs.
Applications
- Iron & steel alloys and traces
- Nitrogen in steel
- Aluminum alloys and traces
- Copper alloys and traces
- Oxygen in Copper
- Nickel alloys and traces
- Cobalt alloys and traces
- Magnesium alloys and traces
- Tin alloys and traces
- Lead alloys and traces
- Titanium alloys and traces
