HANDHELD XRF SPECTROMETERS
TRACER 5
Handheld XRF for cutting-edge researchers. The TRACER 5 pXRF spectrometer; ideal for Methods Development, Research and Complex Materials. A perfect choice for material research and teaching due to its unique flexibility. The TRACER 5 allows complete user control of the excitation conditions. These can be developed using recommended settings in the software or user preferences.
Highlights:
- Modification as user preferences: current, voltage, automated/manual filter, sample spot size, measurement atmosphere options (air, vacuum or helium)
- Wide range of matrix matched calibrations can measure up to 48 elements. Element Analysis from Fluorine to Uranium
- SDD detector with 1µm Graphene window for the ultimate light element performance

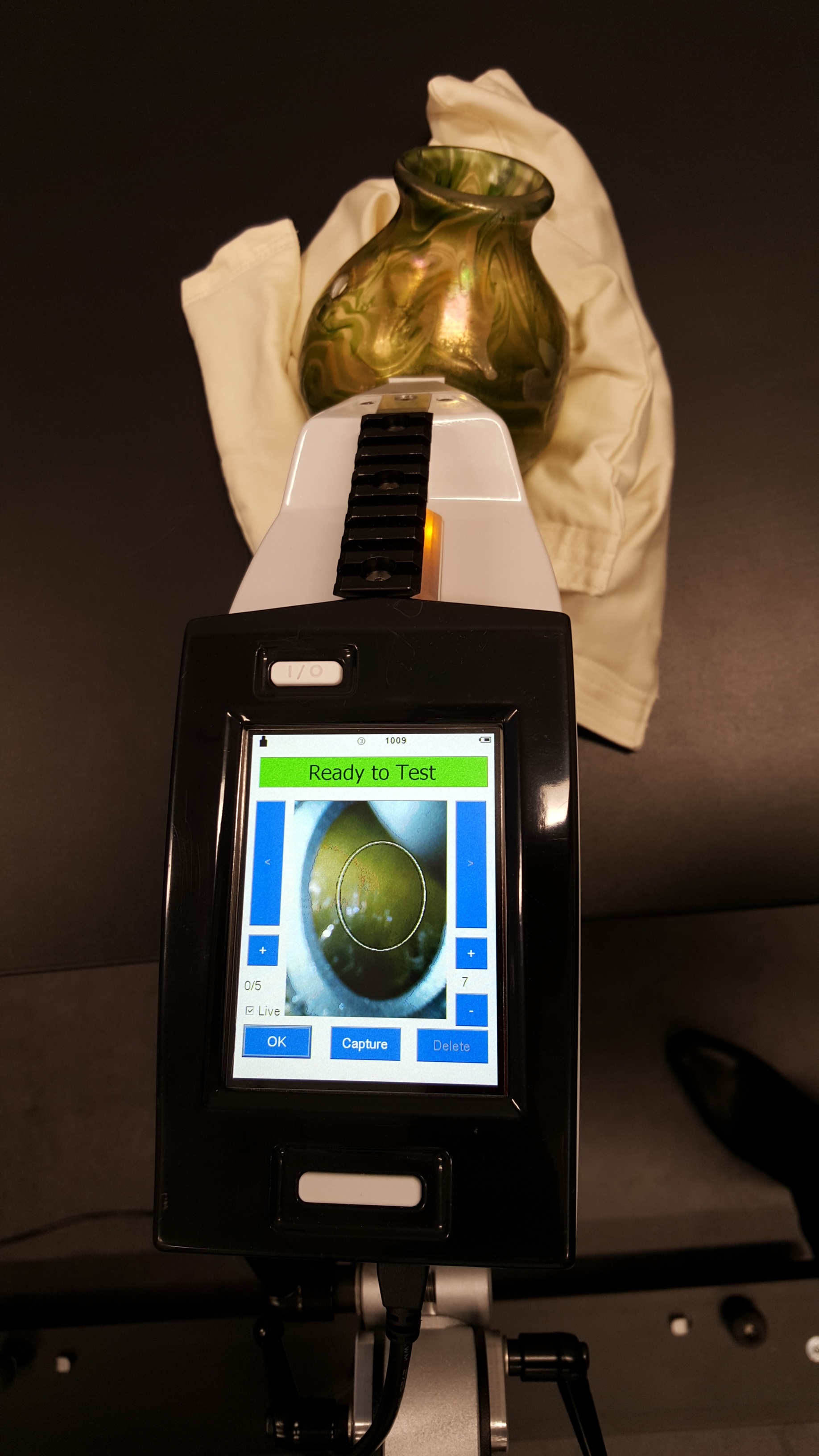

- Internal camera for exact aiming
- Live spectra directly on TRACER 5 AND PC
Applications:
- Soil Analysis for Archaeological Science

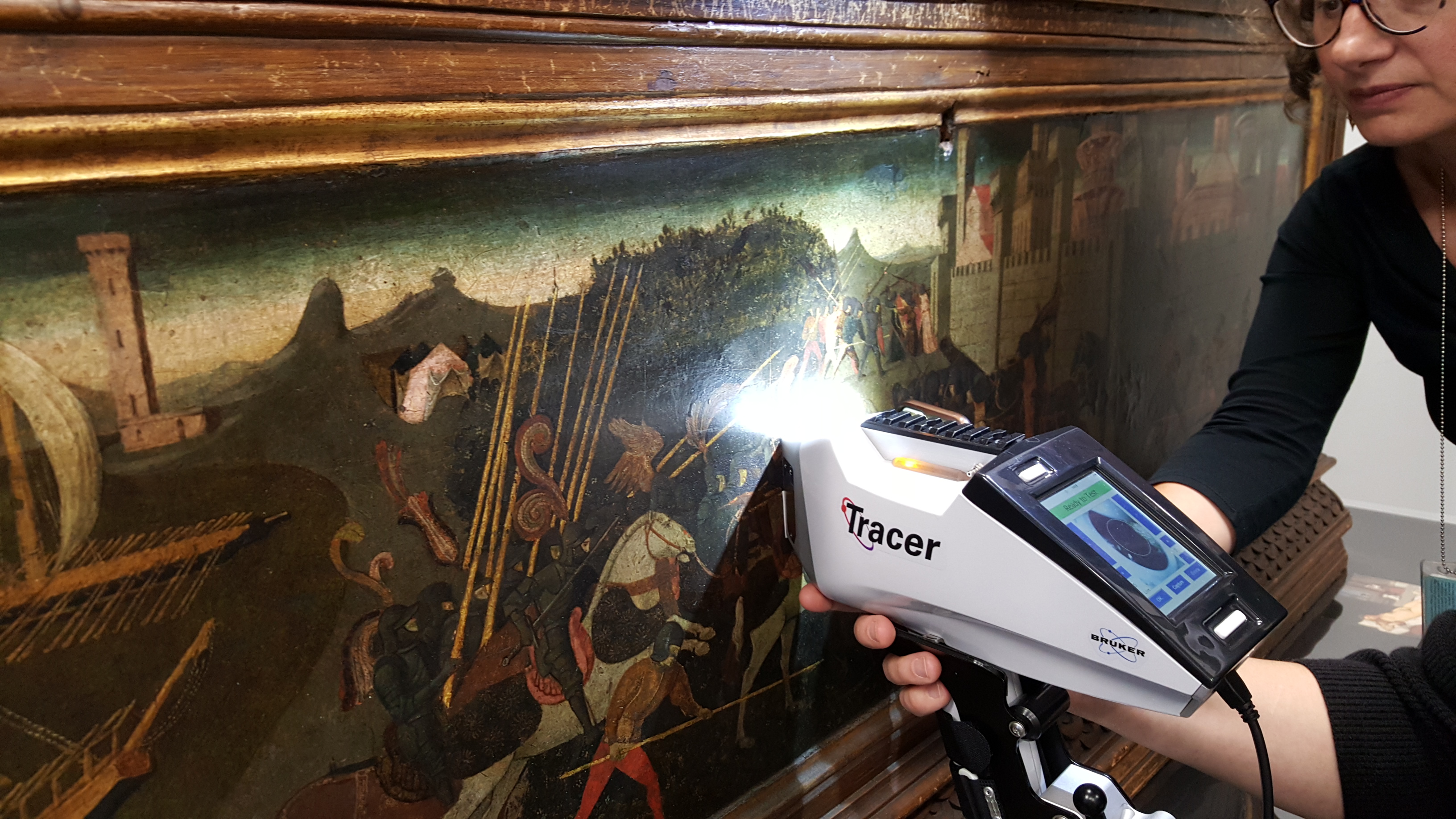

- Art conservation
- Research & Teaching
- Obsidian Composition Analysis
- Archaeometry and Archaeological Science
- Mudrock/Shale Chemostratigraphy
- Food Safety & Agriculture
- Pigment analysis
- Meteorite Testing & Analysis
Technical Data:
- Excitation source: Rhodium (Rh) thin window X-ray tube; X-ray generator 6-50 kV with 4.5-195 µA, maximum 4W output.
- Detector window: 1 μm Graphene
- Detector: Proprietary 20mm2 silicon drift detector with < 140 eV @ 250,000 cps Mn Kα
- Analysis range: Detects from F to U (with He atmosphere); analyzes from Na - U
- Beam path: Capable of selectable beam path of vacuum, helium or air to detect elements as light as Fluorine (F) to as heavy as uranium (U).
- Geometry: Features patented SharpBeam™ beam path for best performance at low power.
- Filters: Operator controlled, motorized 5 position primary beam filter wheel. Manual insertion filter/secondary target slot for factory or user made filters.
- Weight:9 kg (4.1 lbs) with battery; 1.6 kg (3.6 lbs) without battery
- Dimensions: 27.3 cm x 9.4 cm x 29.5 cm (10.75 in x 3.7 in x 11.6 in) L x W x H
