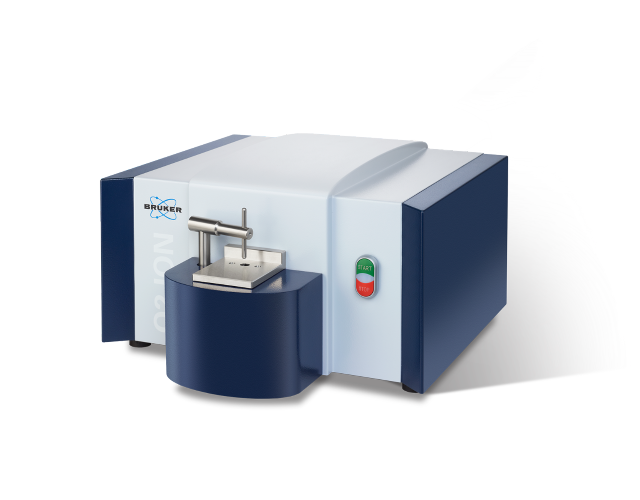

OPTICAL EMISSION SPECTROMETER

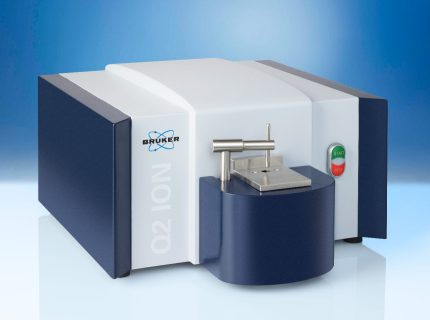

Q2 ION

The new generation of spark spectrometer Q2 ION elevates metal analysis into new levels of simplicity and ease-of-use. Today it is one of the smallest and lightest ultra-compact spark emission spectrometer for metal analysis available. It is a versatile multi-matrix system for comprehensive incoming material inspection and quality assurance of metal alloys. Its primary applications and metal matrices include copper, aluminum and iron at smaller foundries, inspection companies, metal recycling and metal fabricators. An affordable price and exceptional low operational costs make this spectrometer the ideal tool for smaller and medium-size businesses.

Highlights:

• Instant Operation Readiness by AAC^TM (automatic ambient compensation). The patented optical system with AAC compensates thermal drifts and provides maximum analytical stability without thermal conditioning
• TRUE PORTABILITY – The Q2 ION can easily be brought to a nearby site for analysis. Despite its low weight, 19 kg, it is suitable for rugged environments.

Applications:

• Iron & Steel and its Alloy
• Aluminium and its Alloy
• Copper and its Alloys
• Zinc and its Alloys (Zamaks)
• Tins and its Alloys (Solder Checker)

Technical Data:

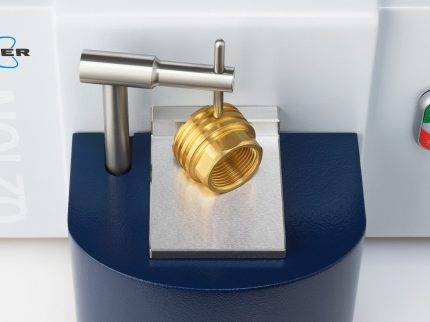

• Spark Stand – Maintenance free, Argon consumption 2.5 L/min
• Analytical Solution Packages (ASP) - Different matrix calibration packages available
  ASPs cover all major elements and alloy groups (upgradable)
• Optical & Read-out System : Uncoated CCD Detector with lowest dark current,
  full spectrum coverage (170-685 nm)
• Dimensions : 440 x 220 x 390 mm (W x H x D)
• Weight : ~ 19 kg
