COMBUSTION GAS ANALYZER – CS/ONH

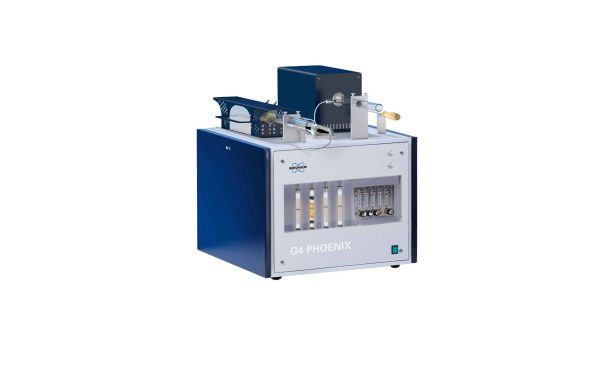

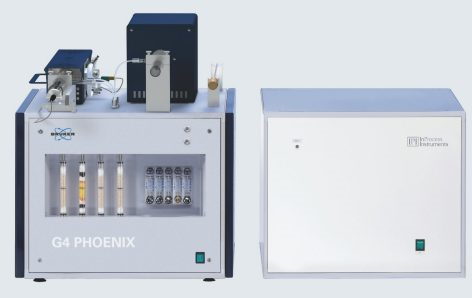

G4 PHOENIX DH

The G4 PHOENIX DH, utilizing carrier gas warm extraction for a rapid and automatic determination of diffusible hydrogen in a wide variety of matrices. Thus, diffusible hydrogen is critical to assess because of embrittlement, hydrogen induced or assisted cracking (HIC/HAC) or hydrogen delayed fracture among other damaging effects. Accurate and rapid diffusible hydrogen measurements allow you to avoid embrittlement, hydrogen-induced cracking and other costly failures.

Highlights:

• Limit of Detection for Hydrogen – highly sensitive thermal conductivity detector (TCD) allows analysis down to a sub-ppm range
• 30 mm diameter of the furnace tube – suitable to accept large samples like sheet metal or welding specimen according to AWS A4.3
• 10 Volumes of the automated gas dosing calibration system – ensure linearity and traceability of your calibration over a wide dynamic range

Applications:

• Versatile for diffusible hydrogen applications for wide variety of materials i.e., steel, welds, and may others

Technical Data:

• Measuring range: 0.05 – 1000 μg/g hydrogen
• Hot extraction furnaces:
  Infrared furnace:900°C max., quartz tube diam. 30 mm
  Wire-heated furnace: 1100°C max., quartz tube dia. 18 mm
• Analysis time*: approx. 3 min – 2 h, for weld samples typically 15 – 20 min
  * Depending on sample material, weight and analysis temp.
• Dimensions: 630 x 640 x 650 mm (WxDxH)
• Weight: 50 kg

                                contact for price
