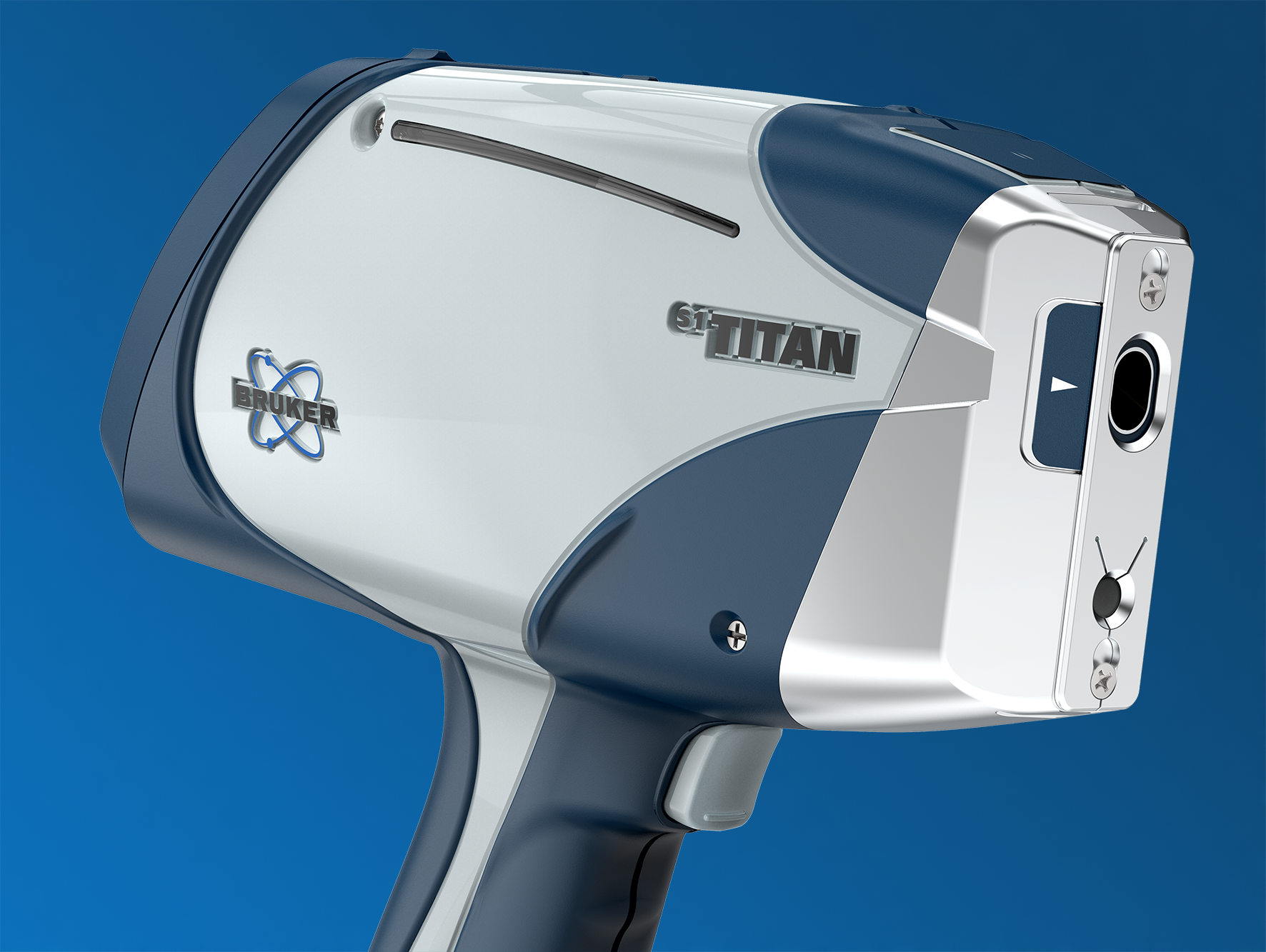

S1 TITAN
HANDHELD XRF SPECTROMETER
S1 TITAN is a sturdy and lightweight, 1.5 kg battery included, tube-based portable XRF spectrometers on the market. S1 TITAN comes with two main features: exceptional accuracy and designed to rapidly report the element composition of a sample right after measuring with non-destructive XRF spectrometry. Limitless applications for in situ measuring solids, liquids and powder. Provide Industry’s leading reliability accuracy, and efficiency in the identification of materials.
Highlights
- Graphene window Silicon Drift Detector (SDD) technology
- Patented TITAN DetectorShieldTM for guaranteed detector protection
- Patented SharpBeamTM collimator for improved analysis precision
- New optimized X-ray source
- Superior resolution and count rates
- Fast analysis for light elements i.e. Magnesium (Mg), Aluminum (Al) and Silicon (Si) without vacuum atmosphere
- Excellent trace element sensitivity and very low detection limits
- Wide range of matrix matched calibration available as well as custom calibration that tailored to your needs
- Camera and small spot options for accurate measuring positioning
- Easily transfer the data with USB flash drive or Wi-Fi DataStream
Technical details
- Weight: 1.5 kg (3.3 lbs) battery included
- Dimensions: L x W x H: 25 cm x 28 cm x 9 cm
- Display: 3.7” LCD touchscreen display, 640 x 480 pixels
- X-ray tube: Rh target tube
- Max voltage: 50 kV
- Testing modes: Assay, Grade ID, Pass/Fail, Limit testing
- Languages supported: Thai, English, Chinese, Japanese, Korean, Spanish, PortugueseBR, Dutch, etc.
Application
- QA/QC and Positive Material Identification (PMI) in fabrication
- Mining and Geoscience exploration
- Precious Metal Analysis i.e., silver testing, gold testing, gold purity testing
- Aerospace alloys
- Ore grade control
- Metal recovery
- Environmental and Agricultural
- Food quality and Safety
- The Restriction of Hazardous Substance (RoHS) Directive
The benefits of SharpBeamTM Technology
- Produces a sharp, defined measurement spot
- Improves measurement precision
- Increase battery life
- Reduces stray scatter of X-ray
- Reduces power requirement
- Reduces instrument weight
