PORTABLE XRF SPECTROMETER
CTX

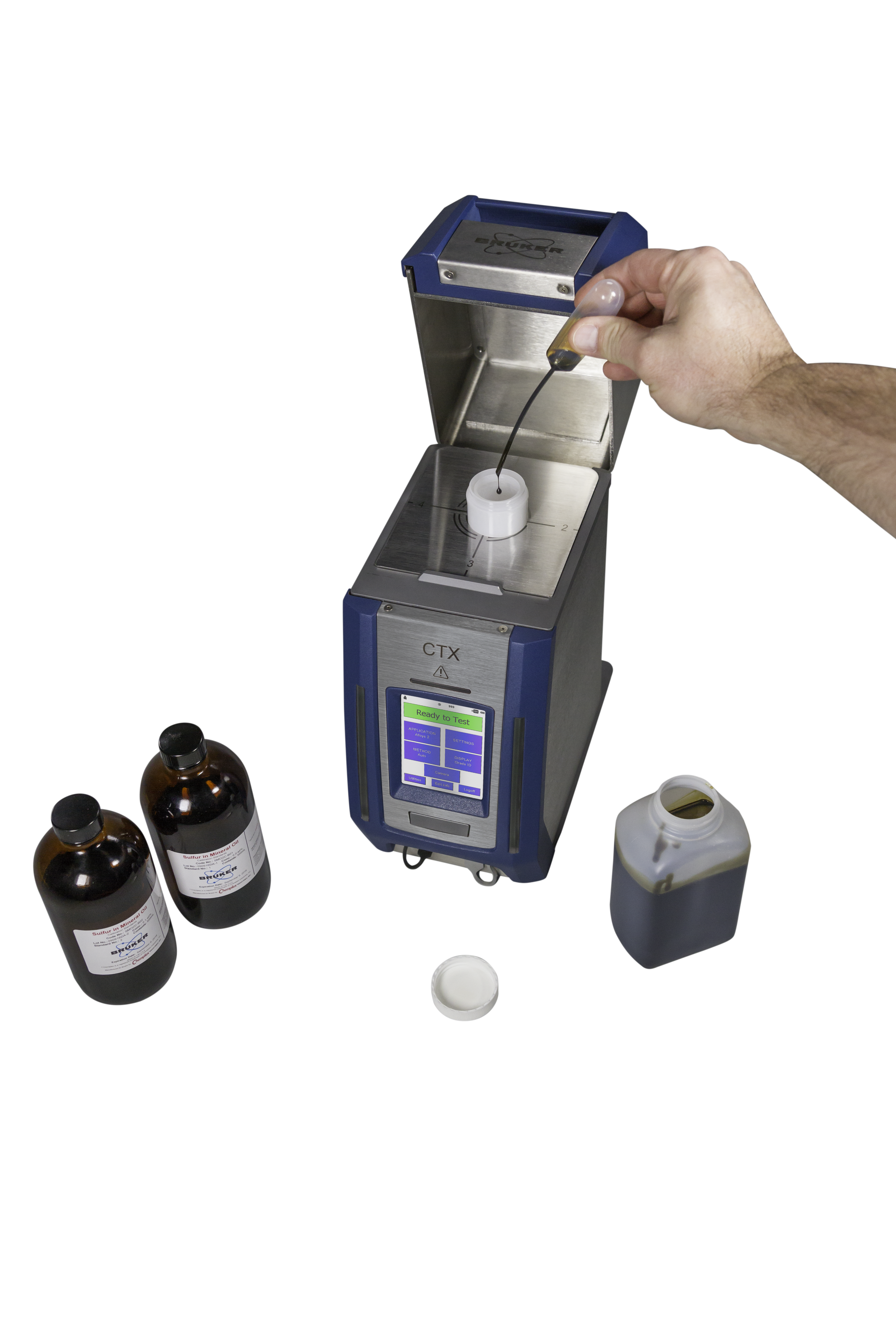

The portable Counter Top XRF (CTX) is small, light-weight, safety-interlocked, and battery operated. At 7 kilograms in weight, the self-contained CTX is truly portable, and has a small footprint of only 14 cm in width. Up to 48 elements analyzed per calibration. Wide elemental range, from Mg to U.
Highlights:
- Up to 48 elements analyzed, wide elemental range, from Magnesium to Uranium
- CTX is lightweight, 7 kg, and truly field portable
- 2 safety interlocks – sample sensor and closed lid sensor
- Detects concentration from ppm to 100%
- Robust, splash and dust proof stainless steel construction
Applications:
- Minerals and mining
- Food safety and agriculture
- Pharmaceutical raw materials
- Precious metals
- Polymers
- Marine fuel oil analysis (MARPOL)
Technical Data:
- X-ray Tube: Rh target; max voltage 50 kV
- Detector: SSD detector with graphene window, window shield included. Typical resolution < 145eV @ 450,000cps
- Sample Chamber: Safety interlocked. Internal dimensions (WxDxH): 12 cm c 13.5 cm x 8.5 cm
- Dimensions:5 cm x 25 cm x 35 cm (5.3 in x 9.8 in x 13.8 in) W x D x H
- Weight:1 kg (15.6 lbs) with battery
- Languages Supported: Up to 18 languages
