OPTICAL EMISSION SPECTROMETER

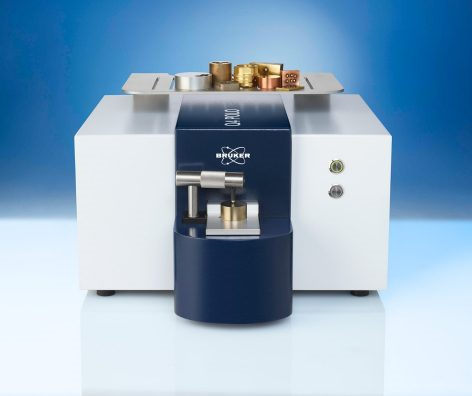

Q4 POLO

The new Q4 POLO is the ready-to-analyze solution from day one, covering all relevant elements and wide concentration ranges. Each base metal package includes all dedicated alloy groups, calibrations, and standardization samples. At the same time, the Q4 POLO provides high uptime, low maintenance, and hassle-free operation. In addition to superior analytical performance for a full range of elements, the Q4 POLO enables applications previously not addressable by such compact instruments:

• Outstanding precision, particularly on light elements
• Excellent results in the challenging analysis of cast iron
• Reliable analysis of nitrogen at low ppm levels in low alloyed steels
• Analysis of oxygen in copper

Highlights:

• AAC™ (Automatic Ambient Compensation) is Bruker's patented concept for self-focusing under temperature variations eliminates thermal drifts.
• The new ArgonShield™ prevents contamination of the optical window during measurements
• The innovative MultiVision™ optics is equipped with an electromagnetic light junction to use the full elemental range with best performance and compactness
• 130 - 785 nm wavelength coverage for comprehensive access to all relevant elements
• The insulated SafetyTip on the new sample clamp prevents incorrect sample positioning, and ensures safe operation for a wide variety of samples

Applications:

• Iron and steel (Fe), and its alloys
• Aluminum (Al), and its alloys
• Copper (Cu), and its alloys

Technical Data:

• Low maintenance spark stand with co-axial argon flow, accessible from 3 sides
• 80 mm sample height with exchangeable SafetyTip™
• Smart Spark^TM – Digital spark source for stable spark generation up to1,000 Hz; active sensing of non-energetic discharges
• Multivision^TM – Electromagnetic light junction, switching between two light
  paths and three alternative plasma views
• AAC^TM (Bruker Patent) – Automatic Ambient Compensation keeps the optic focused, eliminating thermal drifts
• Argon Shield^TM – Prevents window contamination during measurements
• Dimension: 49 x 57 x 28.4 cm (W x D x H)
• Weight: ~36 kg
